We added this page to inform ViseCleats users of the different ways that our jaws can be used. We also would like to brief buyers on the care and upkeep of their vises.
This page will soon be updated with photos and information of actual set-ups. We encourage all to submit ideas, photos and suggestions to ortoolworks and send them to; ortoolwks@att.net
This page will soon be updated with photos and information of actual set-ups. We encourage all to submit ideas, photos and suggestions to ortoolworks and send them to; ortoolwks@att.net
Proper vise care and maintenance is essential in the pursuit of stable machining operations. The following suggestions will assist in improving your vise's effectiveness when using ViseCleats.
WARNING: Failure to adhere to these procedures can possibly damage your ViseCleats Jaws.
WARNING: Failure to adhere to these procedures can possibly damage your ViseCleats Jaws.
- ViseCleats work best when the movable jaw block is tightened firmly to obtain minimum lift.
- When attaching your ViseCleats jaws, tighten the cap screws and tap down the jaws evenly with a shot peen, brass or lead mallet. DO NOT USE STEEL HAMMERS ON ViseCleats Jaws.

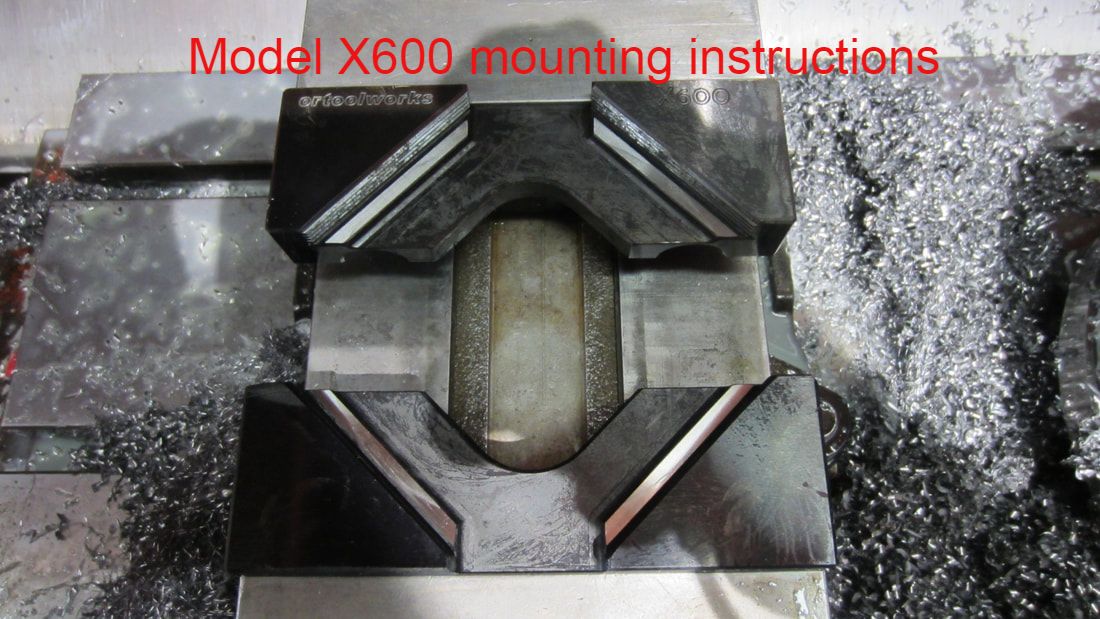

ViseCleats Model X600 (shown above) works best when the 2 "Vee's" are inline with each other. First, attach the engraved jaw to the solid part of vise. Center it well (left to right). Tighten the two cap screws and tap down (brass mallet) on the jaw. Now, attach the second jaw to the movable portion of the vise but don't tighten fully. Place a (approx) 2" round bar in the smaller Vees and slowly close the vise. As you tighten, the moveable jaw will center it'self to the solid jaw. You can now tighten the movable jaw and tap down as stated earlier.
When chucking Hot-rolled disks brass shims will solidify/deaden your grip. When chucking aluminum or cold-rolled steel disks, the serrated vees will crush into your work piece.
It is always best when your blank's base touches all 4 pads. If your blank's base saw-cut is not good, it's recommended to machine it flat. Tap down your blank after tightening.
When chucking Hot-rolled disks brass shims will solidify/deaden your grip. When chucking aluminum or cold-rolled steel disks, the serrated vees will crush into your work piece.
It is always best when your blank's base touches all 4 pads. If your blank's base saw-cut is not good, it's recommended to machine it flat. Tap down your blank after tightening.
